PRESSURE SENSITIVE LABELING MACHINES

Do you need an automatic pressure sensitive labeling machine? Biotef has labelers to meet your most demanding package requirements available for immediate purchase or lease.

BIOTEF LABELING SYSTEM

Automatic PS Label Applicator

The Biotef Label Applicator is ready for the most demanding jobs. Our universal label machine is certified for front/back/round pressure sensitive label application on containers from 1oz up to 2.5 Gallons.

The Biotef Label Applicator is designed with flexibility in mind and will work for many different markets, including industrial & agricultural chemicals, health & beauty products, food & beverage, pharmaceuticals & nutraceuticals, and many more.

Label machine wrap around module
Spacers are controlled by an independent servo motor and adjustable around a 6" belt.
Label machine stepper system
Bigger is better with a 14" platter for larger label rolls and less changeover.
Label machine stepper system
A 6mm wide label sensor allows for thicker labels than standard label applicators.
Label machine stepper system

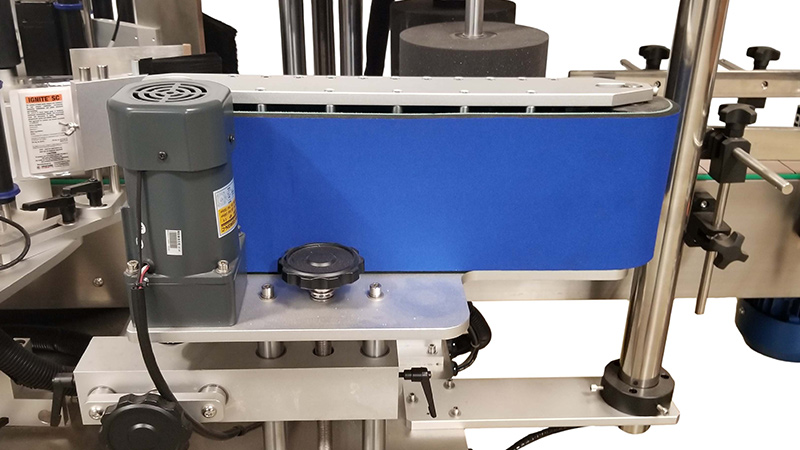

An independent servo motor drives the upgraded 18 inch belt for operational flexibility.
Label machine stepper system
A manual belt adjuster allows operators to raise the drive height for various bottles.
Label machine stepper system
An independent servo motor runs the top drive; belts can be set to different speeds.

Automatic Label Applicator Specs

  • Dimensions: 9.84' long x 5.58' wide x 4.59' high - Weight: Approximate 660 lbs 304 Stainless Construction
  • Conveyor: 28"-34" Working Height - 6.5" Wide Delrin Chain Link Table Top Conveyor
  • Electrical: 220v, Single Phase, 60hz
  • Label Specs: Labels from 1"-8" Tall, 1" to 18" Long & Up To 6mm Thick- Speeds Up to 60 Feet Per Minute
  • Container Specs: Containers up to 11" wide and 15.5" tall
  • Accuracy: 2mm Label Placement Tolerance
  • Servo Stepper Motors & Servo Top Hold Belt Drive - Independent Drive Spacing Wheels
  • 14" OD Label Platter
  • Upgraded Label Sensors for Labels Up To 6mm Thick
  • Height & Angle Adjustable Wipe & Roller Applications
  • Easy To Use Operator Interface
